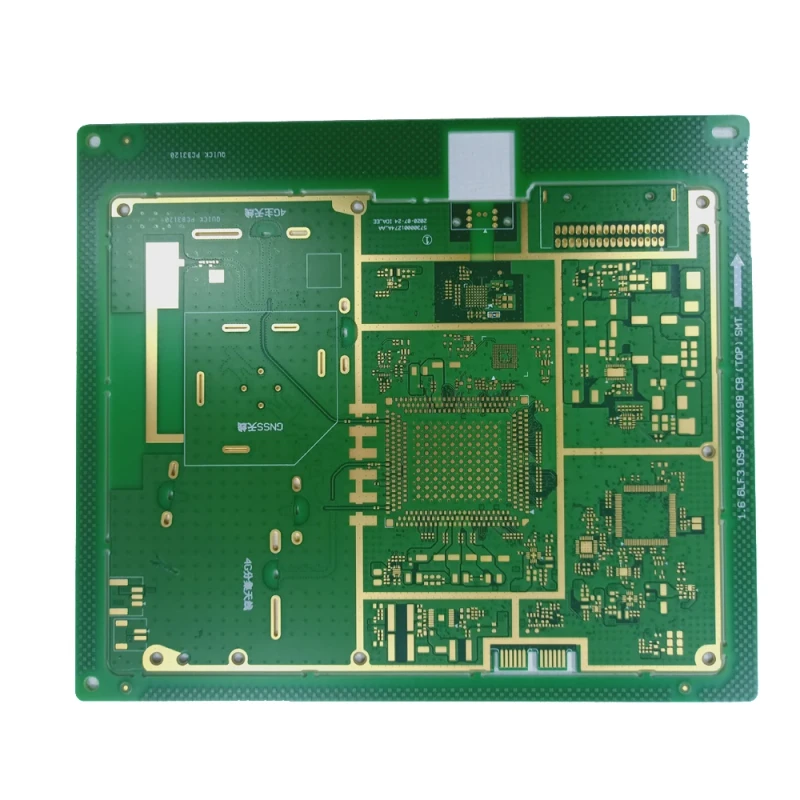

Consumer Electronics Double Sided PCB Prototyping Fast Affordable Custom Service for Industrial
Our website showcases only a selection of our products. If you have other requirements or can't find the right product, please feel free to contact our customer service team. We are here to assist you!
Type High Frequency PCB Base Material Rogers / Taconic / Arlon / PTFE / FR4 High TG Board Thickness 0.2 mm – 6.0 mm(0.01in-0.24in) Copper Thickness 0.5 oz – 4 oz Min. Hole Size 0.15 mm (Mechanical) / 0.1 mm (Laser) Min. Line Width 3mil Min. Line Spacing 3mil Surface Finishing ENIG (Immersion Gold), Immersion […]
Introduction
| Type | High Frequency PCB | Base Material | Rogers / Taconic / Arlon / PTFE / FR4 High TG |
| Board Thickness | 0.2 mm - 6.0 mm(0.01in-0.24in) | Copper Thickness | 0.5 oz - 4 oz |
| Min. Hole Size | 0.15 mm (Mechanical) / 0.1 mm (Laser) | Min. Line Width | 3mil |
| Min. Line Spacing | 3mil | Surface Finishing | ENIG (Immersion Gold), Immersion Silver, HASL |
| Board Size | custom | Layer Count | Up to 40 layers |
| Surface Roughness Control | HVLP copper: Ra ≤ 0.5um (for minimal signal loss) | Dk / Df | Dk 3.0-10.2 / Df 0.001-0.020 @10GHz (material dependent) |
| Impedance Tolerance | ±5% (TDR tested, 50Ω/100Ω) | Back Drilling Depth Control | ±0.05 mm precision |
| HDI Technology | Laser drilled blind/buried vias, 0.1 mm hole | Via-in-Pad | Resin plugging & copper plated over |
| ENIG Thickness | Au 2-4u" / Ni 120-200u" | Copper Foil Type | HVLP / RTF / VLP (for low loss) |
| Certifications | UL, RoHS, REACH, ISO9001, IATF16949 |
Our website currently displays only a selection of our circuit board products. If you have specific requirements or need more detailed information, feel free to contact us. Our experienced team is ready to provide customized solutions tailored to your project needs. Whether it's design optimization, functional integration, or material selection, we are here to support your goals. Let's work together to develop high-quality circuit board solutions that empower your brand.
