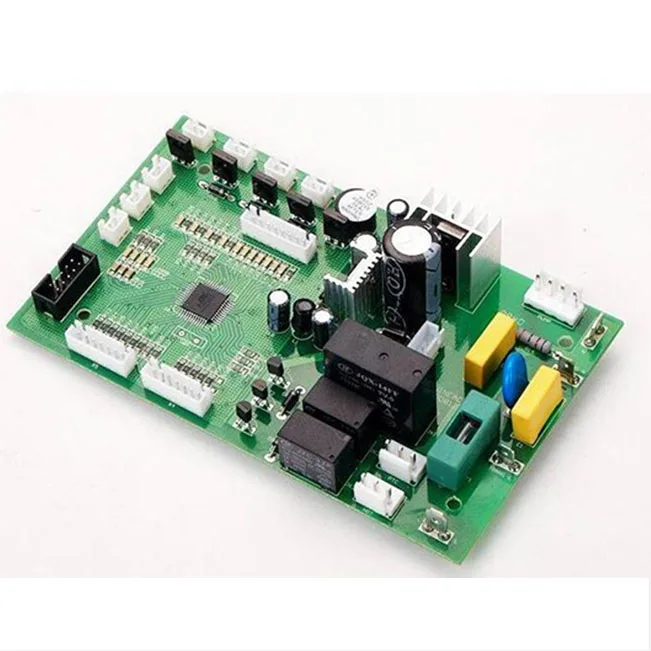

Durable FR-4 Material Double-Sided PCB HDI Fabrication and Assembly
Our website showcases only a selection of our products. If you have other requirements or can't find the right product, please feel free to contact our customer service team. We are here to assist you!
Type Double Sided PCB Base Material FR-4 Board Thickness 2.4mm(0.09in) Board Size 88*168MM(3.46*6.61in) Copper Thickness 1OZ(28.35g) Min. Hole Size 0.3mm(0.01in) Min. Line Width 4.2mil(0.11mm) Min. Line Spacing 4.2mil(0.11mm) Surface Finishing ENIG PCB Thickness 0.2mm-4.2mm Max Finished Size 24.5*47inch Max Base Copper Weight 12OZ Min Trace/Spacing 2/2mil Max PCB Aspect Ratio 20:01 Service OEM Services Provided […]
Introduction
| Type | Double Sided PCB | Base Material | FR-4 |
| Board Thickness | 2.4mm(0.09in) | Board Size | 88*168MM(3.46*6.61in) |
| Copper Thickness | 1OZ(28.35g) | Min. Hole Size | 0.3mm(0.01in) |
| Min. Line Width | 4.2mil(0.11mm) | Min. Line Spacing | 4.2mil(0.11mm) |
| Surface Finishing | ENIG | PCB Thickness | 0.2mm-4.2mm |
| Max Finished Size | 24.5*47inch | Max Base Copper Weight | 12OZ |
| Min Trace/Spacing | 2/2mil | Max PCB Aspect Ratio | 20:01 |
| Service | OEM Services Provided | MOQ | 1 PCS |
Our website currently displays only a selection of our circuit board products. If you have specific requirements or need more detailed information, feel free to contact us. Our experienced team is ready to provide customized solutions tailored to your project needs. Whether it's design optimization, functional integration, or material selection, we are here to support your goals. Let's work together to develop high-quality circuit board solutions that empower your brand.
