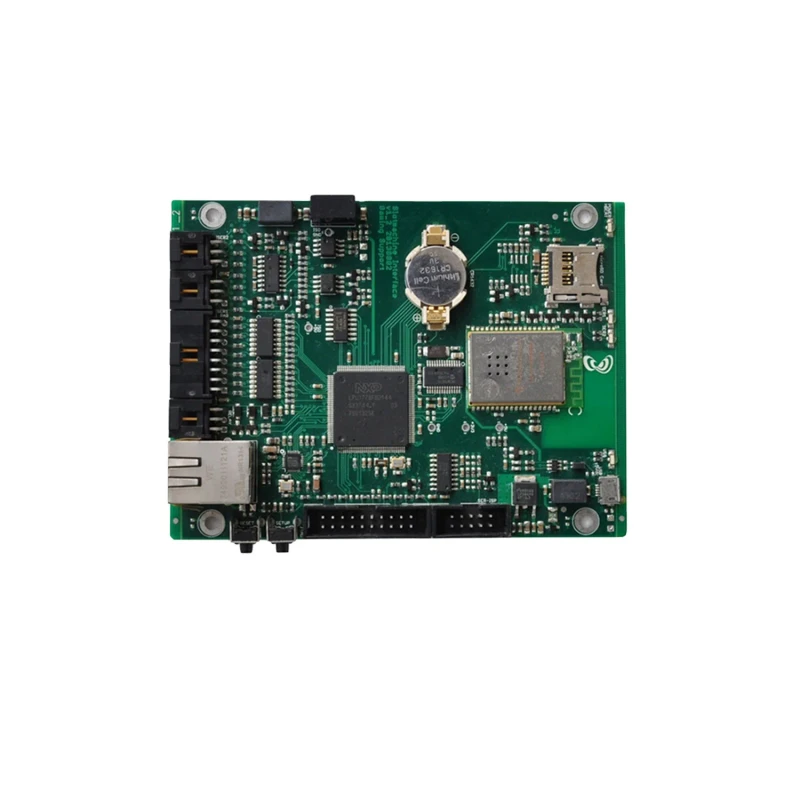

OEM Double-Sided PCB Assembly Dalian One Stop Service China Electronics Manufacturer
Our website showcases only a selection of our products. If you have other requirements or can't find the right product, please feel free to contact our customer service team. We are here to assist you!
Functional Application Professional Custom PCBA Type Multilayer Custom PCB Assembly Base Material FR4 CEM1 CEM3 Ceramic Aluminum Board Thickness 0.5~3.2mm(0.02~0.13in) Copper Thickness 1~4oz Min. Hole Size 0.15mm(0.01in) Min. Line Width 0.08mm(0in) Min. Line Spacing 0.08mm(0in) Surface Finishing RoSH, TS Certificate Min BGA R-VTx Pitch 0.35 mm Reflow Soldering Temperature Accuracy ±4°C Min Board Thickness 10 […]
Introduction
| Functional Application | Professional Custom PCBA | Type | Multilayer Custom PCB Assembly |
| Base Material | FR4 CEM1 CEM3 Ceramic Aluminum | Board Thickness | 0.5~3.2mm(0.02~0.13in) |
| Copper Thickness | 1~4oz | Min. Hole Size | 0.15mm(0.01in) |
| Min. Line Width | 0.08mm(0in) | Min. Line Spacing | 0.08mm(0in) |
| Surface Finishing | RoSH, TS Certificate | Min BGA R-VTx Pitch | 0.35 mm |
| Reflow Soldering Temperature Accuracy | ±4°C | Min Board Thickness | 10 layers: 1.20 mm |
| Finished Board Thickness | ≤1.0 mm, Tolerance ±0.1 mm | Product Name | PCB Assembly |
| Solder Mask Color | Black, Red, Yellow, White, Blue, Green | Base Material | FR4/ROGERS/Aluminum/High TG |
| Speed | 0.15 sec/chip, 0.7 sec/QFP | DIP Capacity | 420 square meters per hour |
| Adhesive Dispensing | Precise dispensing, coating, potting, UV glue application |
Our website currently displays only a selection of our circuit board products. If you have specific requirements or need more detailed information, feel free to contact us. Our experienced team is ready to provide customized solutions tailored to your project needs. Whether it's design optimization, functional integration, or material selection, we are here to support your goals. Let's work together to develop high-quality circuit board solutions that empower your brand.
