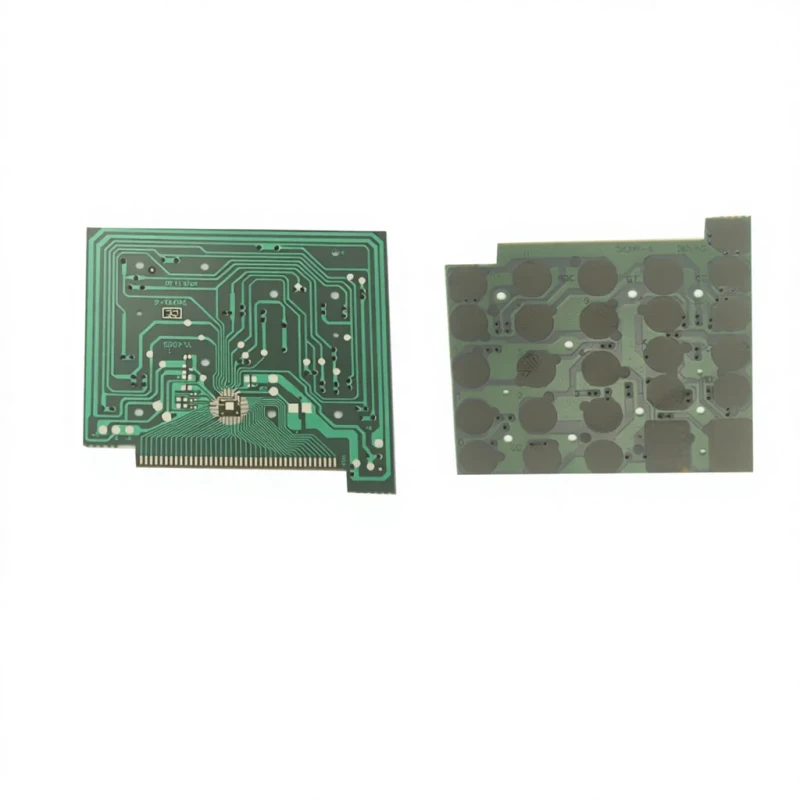

PCB for Avionics Printed Circuit Board with Military Standards
Our website showcases only a selection of our products. If you have other requirements or can't find the right product, please feel free to contact our customer service team. We are here to assist you!
Number of Layers Single side Solder Mask Green Type Multilayer pcb Board Thickness 0.8mm(0.03in) Board Size 40*3.5cm(15.75*1.38in) Base Material FR4 TG135 Copper Thickness 1oz Min. Hole Size 0.2mil Min. Line Width 0.2mil Min. Line Spacing 0.2mil Surface Finishing Immersion Gold Board Dimension(CM) 40*3.5 Number of Layers 1 layer Panel Information Same Boards in Panel Planelize […]
Introduction
| Number of Layers | Single side | Solder Mask | Green |
| Type | Multilayer pcb | Board Thickness | 0.8mm(0.03in) |
| Board Size | 40*3.5cm(15.75*1.38in) | Base Material | FR4 TG135 |
| Copper Thickness | 1oz | Min. Hole Size | 0.2mil |
| Min. Line Width | 0.2mil | Min. Line Spacing | 0.2mil |
| Surface Finishing | Immersion Gold | Board Dimension(CM) | 40*3.5 |
| Number of Layers | 1 layer | Panel Information | Same Boards in Panel |
| Planelize | 8*1 | Extra Rail | ONE side |
| Fiducial Points | Yes | Finished Thickness (mm) | 1.8mm |
| Board Type | Rigided | Outer Copper | 1oz |
| Inner Copper | 0oz |
Our website currently displays only a selection of our circuit board products. If you have specific requirements or need more detailed information, feel free to contact us. Our experienced team is ready to provide customized solutions tailored to your project needs. Whether it's design optimization, functional integration, or material selection, we are here to support your goals. Let's work together to develop high-quality circuit board solutions that empower your brand.
