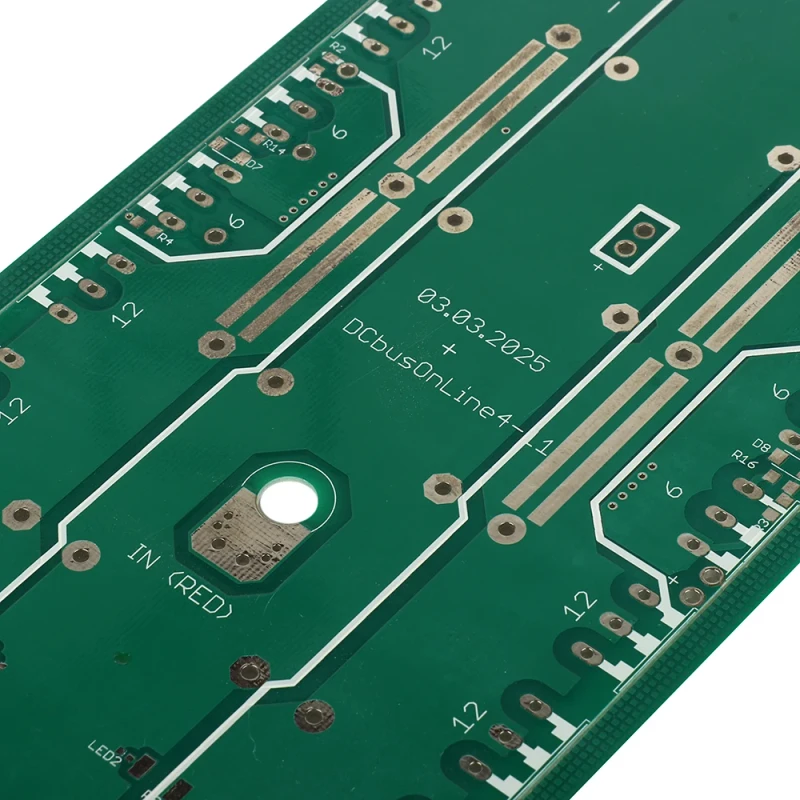

Ultra-High Current 9oz Heavy Copper PCB Prototype Advanced Manufacturer for Robotics Control and Industrial Automation
Our website showcases only a selection of our products. If you have other requirements or can't find the right product, please feel free to contact our customer service team. We are here to assist you!
Material ShengYi (IT-180A) / Isola / Rogers Functional Application Industrial Robotics / Motor Drive Type Heavy Copper PCB / Power Distribution Board Base Material High TG FR4 (TG170/180) / Rogers 4350B Hybrid Board Thickness 2.4mm / 3.0mm / 4.0mm (Ultra-Thick for Stability) Copper Thickness 9oz (Extreme Heavy Copper) / 10oz / 12oz Min. Hole Size […]
Introduction
| Material | ShengYi (IT-180A) / Isola / Rogers | Functional Application | Industrial Robotics / Motor Drive |
| Type | Heavy Copper PCB / Power Distribution Board | Base Material | High TG FR4 (TG170/180) / Rogers 4350B Hybrid |
| Board Thickness | 2.4mm / 3.0mm / 4.0mm (Ultra-Thick for Stability) | Copper Thickness | 9oz (Extreme Heavy Copper) / 10oz / 12oz |
| Min. Hole Size | 0.3mm (Mechanical) / 0.5mm (Large Current via) | Min. Line Width | 0.25mm (10mil) |
| Min. Line Spacing | 0.25mm (10mil) | Surface Finishing | HASL Lead-free / ENIG (Immersion Gold) / OSP (High |
| Board Size | 2 - 20 Layers | Max Current | Continuous 150A - 250A+ (Customizable by Trace Width) |
| PTH Copper Weight | Min 2oz (70um) inside holes | Inspection Suite | 100% Micro-sectioning & Thermal Stress Test |
| Thermal Conductivity | 2.5W/mK - 4.0W/mK (High-Efficiency Cooling) | Acceptance Standard | IPC-A-600 Class 3 / IPC-6012 Class 3 |
Our website currently displays only a selection of our circuit board products. If you have specific requirements or need more detailed information, feel free to contact us. Our experienced team is ready to provide customized solutions tailored to your project needs. Whether it's design optimization, functional integration, or material selection, we are here to support your goals. Let's work together to develop high-quality circuit board solutions that empower your brand.
